Off-Grid Power Evolution

AUTONOMOUS
POWER FOR
REMOTE SITES.

A customizable solar power platform engineered for cameras, wireless networks, access control, sensors and monitoring equipment where utility power is not available.

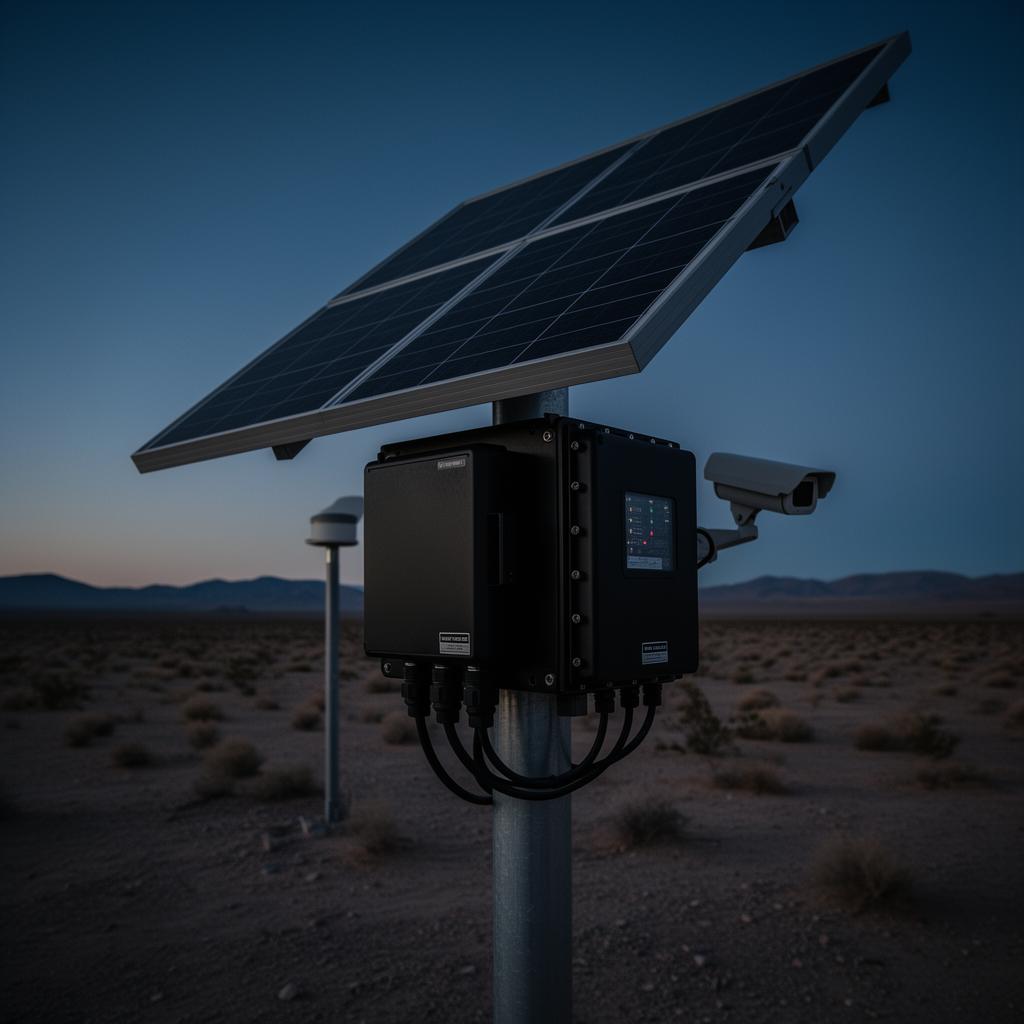

NEXEL off-grid solar power enclosure mounted on a steel pole at a remote desert site
NX-200 / Field Unit

01 // System Advantages

Engineered for reliability where the grid ends.

Built for remote sites, temporary infrastructure and mission-critical 24/7 operation.

Solar Powered

Continuous renewable generation tuned for site irradiance.

12V / Optional 24V

Native DC architecture compatible with industrial loads.

Pole or Wall Mount

Reinforced brackets for rapid field deployment.

Custom Built

Each system engineered to your load profile and runtime.

24/7 Operation

Self-heating LiFePO4 storage for sub-zero reliability.

Thermal Managed

Thermostat-controlled ventilation across the envelope.

02 // Field Applications

Built for critical infrastructure.

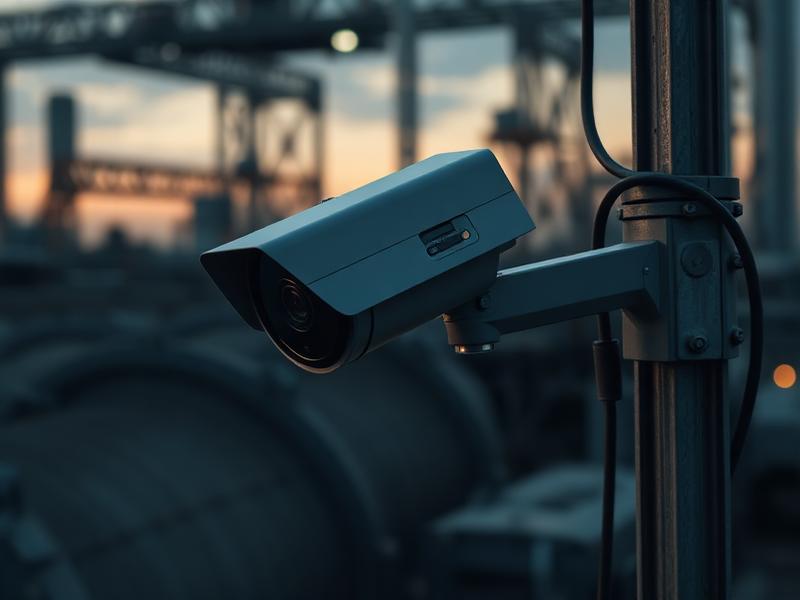

Surveillance camera on industrial pole

Surveillance

Power high-resolution CCTV and PTZ cameras across remote perimeters.

Case // 01

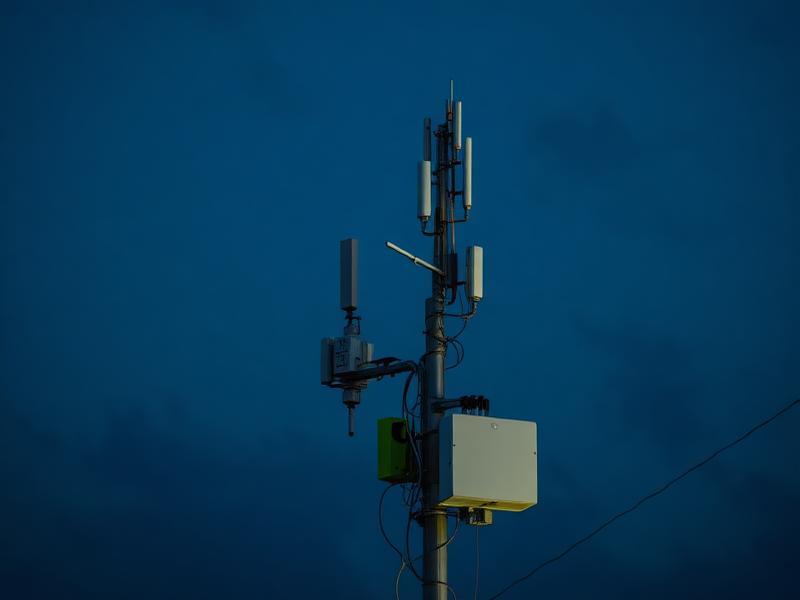

5G antenna on a remote pole

5G / Mesh Networks

Extend wireless reach to temporary infrastructure and utility sites.

Case // 02

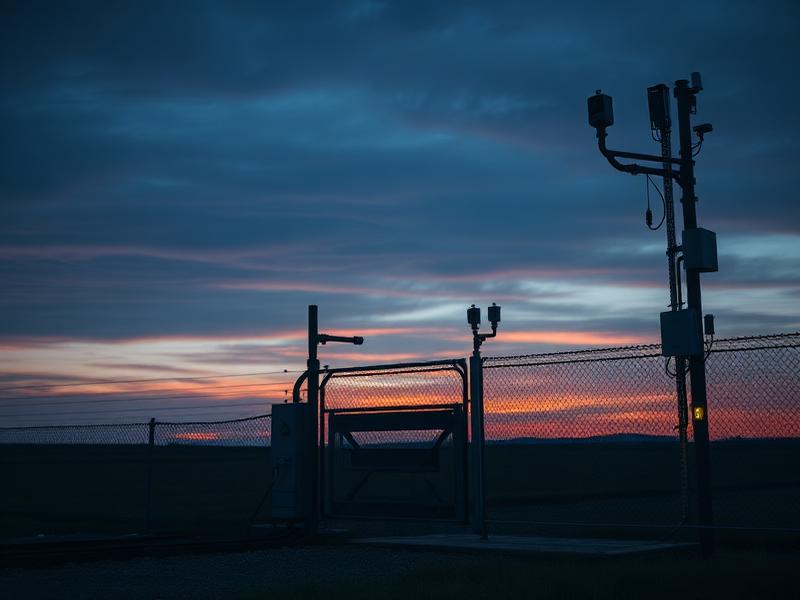

Industrial sensors and gate access at dusk

Sensors & Access

Continuous monitoring for gate control, environment and remote SCADA.

Case // 03

Equipment Compatibility

Cameras
LTE / 5G
Mesh Networks
Access Control
Sensors

03 // Engineering Specs

The Prototype Configuration

Solar Panel200W Renogy ShadowFlux
Charge ControllerVictron SmartSolar MPPT 100/30
Battery StorageLiTime 12.8V 165Ah self-heating LiFePO4
Thermal ManagementThermostat-controlled Ventilation
Protection40A DC Protection Switch
Distribution12.8V DC Terminal Bars
MountingPole / Wall Ready
12V / 24V
40A DC Protection
Pole / Wall
UNIT_ID: NX-200-L165

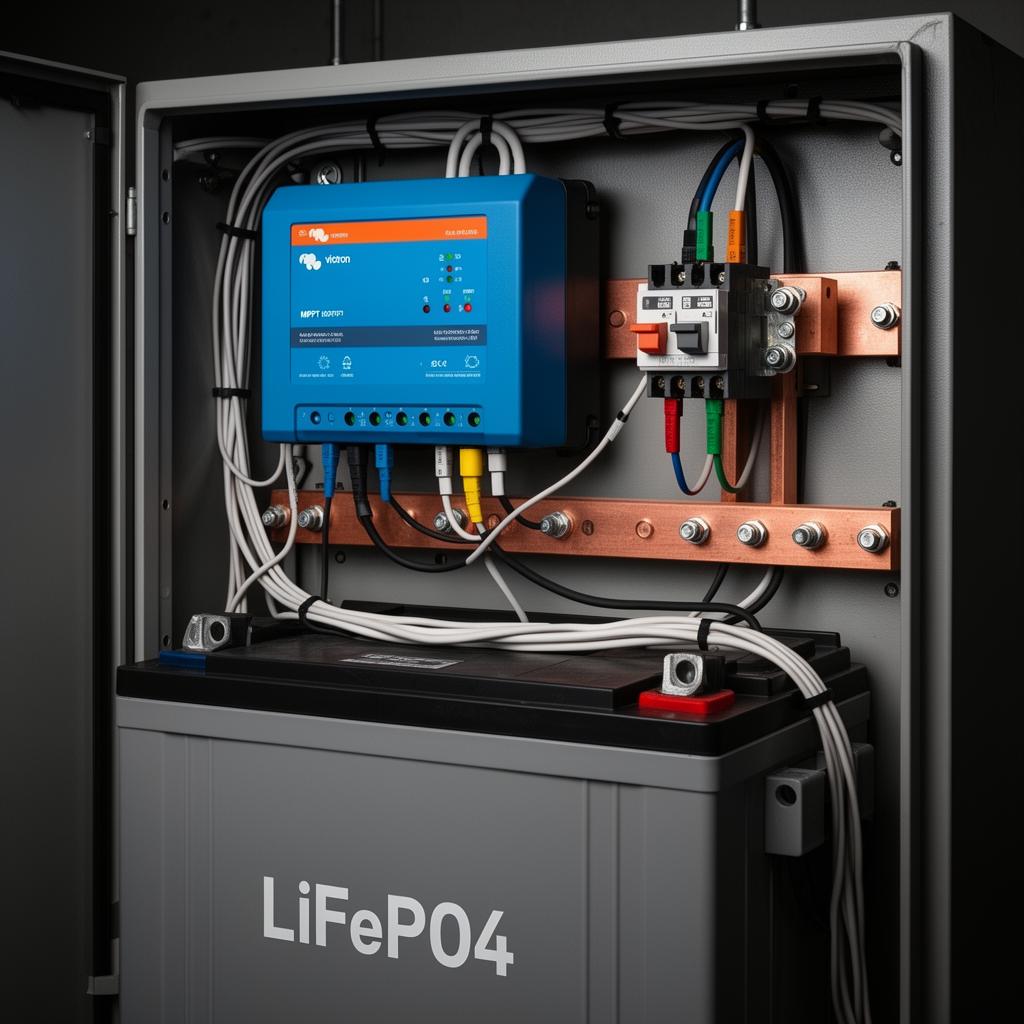

Interior of the NEXEL enclosure showing Victron MPPT controller, LiFePO4 battery and DC bus bars
12V / 24V
Dual Architecture
POLE / WALL
Mounting Ready

04 // Procurement

Get a Quote

Specify your site requirements and our engineering team will return a custom power configuration.
